    6T PH Diesel Engine Drive Disk Mobile Wood Chipping Machine

    Ask Lasest Price
    Brand Name : ThoYu
    Model Number : TYDX-1000
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, Western Union, MoneyGram
    Supply Ability : 25 sets per month
    Delivery Time : 10-120 working days
    • Product Details
    • Company Profile

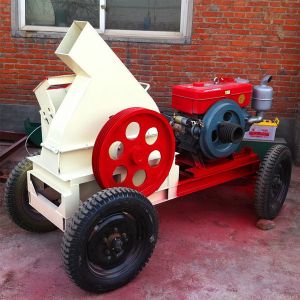

    6T PH Diesel Engine Drive Disk Mobile Wood Chipping Machine

    6t Ph Diesel Engine Drive Mobile Disk Wood Chipping Machine


    The mobile disk wood chipping machine can cut wood logs, small diameter wood, brush wood, bamboo, straw, and other raw materials.


    The user can select the appropriate production machine according to needs, the wood cutting size can be adjusted. the Machine is widely used in the production of paper, edible fungus, shaving board, sawdust, high density board, fiber board, and so on.


    Mobile disk wood chipping machine parameter


    Mobile disk wood chipping machine
    ModelTYDX-800TYDX-1000TYDX-1200TYDX-1400
    Capacity (t/h)3-54-66-88-10
    Main power (kW)30374555-75
    Cutter diameter (mm)800100012001400
    Feeding port size (mm)200*200300*320330*350360*370
    Max feed diameter (mm)Φ190Φ290Φ330Φ350
    Total weight (kg)1680272035604120
    Dimensions (mm)1800*700*12002100*1000*13002200*1200*18502600*1300*1900

    6T PH Diesel Engine Drive Disk Mobile Wood Chipping Machine


    Mobile disk wood chipping machine features

    1. Thickened steel with long service life
    2. Fixed blades are installed at the feeding hole, reasonable design, and extended life, feed port can be lengthened.
    3. Thickness cutter disk, stable function, long service time.
    4. Equipped with motor frame when we shipping the machine, accessories containing motor wheels.
    5. Add steel hook and handle, easy to drag moving machine and open the shell to check the working space and replace blades.
    6. We support modification services installation power and mobile device.
    7. The main part of the mobile disk wood chipping machine is through the dynamic balancing equipment ensure the machine can run smoothly, reduce noise, improve production efficiency.

    6T PH Diesel Engine Drive Disk Mobile Wood Chipping Machine
