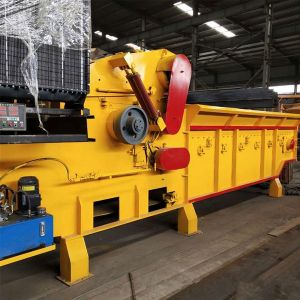

25t Ph Efficient Large Size Wood Material Wood Crusher Machine

Large size wood material wood crusher is a device that has been upgraded based on the equipment of the template crusher itself. The equipment combines the advantages of the template crusher to abandon the equipment developed by the template crusher which cannot break the bulk material.

Large size wood material wood crusher has more powerful functions, stable use, wide material applicability, outstanding functions, convenient operation and repair, and is a green and low-carbon efficient equipment.

Large size wood material wood crusher applications

The integrated crusher has a wide range of raw materials for processing, Such as various small diameter timber, sheet metal, slats, round wood core, building formwork, etc. As well as various non-wood raw materials such as various types of bulk straw, cottonwood, reed, etc.

Large size wood material wood crusher parameters

Large size wood material wood crusher working principles

The integrated crusher mainly relies on impact energy to complete the crushing of wood.

When the hammer-type integrated crusher is working, the motor drives the rotor to rotate at a high speed, and the wood evenly enters into the comprehensive crusher cavity.

The high-speed rotary hammer impacts, shears and tears the wood to cause the wood to be broken, and the gravity of the wood itself makes the wood From the hammer head rotating at high speed to the baffle and sieve bar in the frame;

In the lower part of the rotor, there is a sieve plate, and the size of the pulverized wood which is smaller than the mesh size is discharged through the sieve plate, and the wood larger than the mesh size is retained in the sieve. The board continues to be hit and ground by a hammer.

Large size wood material wood crusher structures

1. The large size wood material wood crusher is a machine that crushes the input wood quality to produce a block shape;
2. And the integrated crusher is provided with a vehicle body of a traveling device, and a rotary crushing device that is provided on one end side of the vehicle body to pulverize wood to form wood.

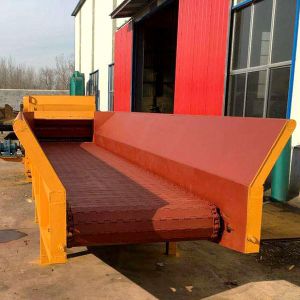

3. The blade type supply device provided in the upper portion of the rotary crushing device, and the wood that has been broken by the rotary crushing device, which is provided from the lower portion of the rotary crushing device to the other end side in the traveling direction of the vehicle body;
4. It is carried out The externally discharged carry-out device, the drive travel device disposed between the rotary crusher and the carry-out device;
5. And the drive device for the drive source of the rotary crusher, the airfoil supply device, and the carry-out device.
